From GIS to Remote SensingThis is a tutorial about the land cover classification using the Random Forest algorithm in the Semi-Automatic Classification Plugin (SCP).
Please note that the installation of the dependency scikit-learn is required (see Plugin Installation). It is assumed that you have already read the Basic Tutorials.
Following the video tutorial.
Introduction
This tutorial describes how to perform the land cover classification of a multispectral image using the Random Forest algorithm. We are going to identify the following land cover classes:
- Water;
- Built-up;
- Vegetation;
- Soil.
Download the Data and prepare the Band set
In this tutorial we are going to use a subset of Sentinel-2 Satellite image, already converted to reflectance and clipped to the study area, downloading a .zip file (which contains modified Copernicus Sentinel data 2023). Of course, this tutorial can be applied to any multispectral image.
Download the .zip file from this link and extract the directory containing the image bands.
We must define the Band set which is the input image for SCP classification. Open the tab Band set clicking the button in the SCP menu or the SCP dock. Click the button open file to select the .tif files from the extracted directory to the Band set tab.
Select Sentinel-2 in the Wavelength list of the Band quick settings.
We can display the image in natural colors. In the Working toolbar, click the list RGB= and select the item 3-2-1.
Create the ROIs
In general, we need to create a Training input file in order to collect Training Areas (ROIs) to train the classification algorithm. In this tutorial, we are going to import a GeoPackage .gpkg file containing polygons that we are going to import in a Training input file. Download the GeoPackage .gpkg file from this link .
This GeoPackage .gpkg file includes the Macroclass IDs defined in the following table, which is the classification system. Of course, classes should be adapted to the classification objective.
Macroclass name | Macroclass ID |
|---|---|
Water | 1 |
Built-up | 2 |
Vegetation | 3 |
Soil | 4 |

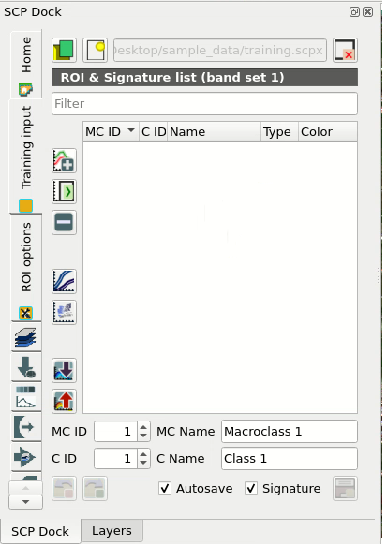

In the SCP dock select the tab Training input and click the button new file to create the Training input (define a name such as training.scpx). The path of the file is displayed and a vector is added to QGIS layers with the same name as the Training input.
Now open the tool Import vector to import the GeoPackage .gpkg file into the Training input.
First, in Select a vector open_file select the path to the GeoPackage .gpkg file. Now we can select the vector field corresponding to MC ID field, MC Name field, C ID field, and C Name field which in this vector are macroclass_id, macroclass_name, class_id, and class_name respectively. Finally click Import vector to import all the vector polygons as ROIs in the Training input (this process can take a while). Before running a classification (or a preview), set the color of land cover classes that will be displayed in the classification raster. In the ROI & Signature list, double click the color (in the column Color) of each ROI to choose a representative color of each class. Also, we need to set the color for macroclasses in ROI & Signature list.
Create a Classification Preview and Random Forest parameters
We can now perform a Classification preview in order to assess the results before the final classification.
First, we need to select the classification algorithm Random Forest. Open the tool Classification to set the input band set (in this case 1), check Use Macroclass ID, and in Algorithm select the Random forest.
Tip
In case you defined the same Macroclass ID value for all the ROIs in the Training input, you should check Use Class ID.
Available parameters for Random forest are:
- Number of trees that sets the number of trees in the forest; this is one of the most important parameters because it defines the complexity of the forest, the higher the better but with the downside of increasing the computation time.
- Minimum number to split that sets the minimum number of samples required to split an internal node; in general it can be leaved 2 as default.
- Max features that sets the number of features considered in node splitting; in general it can be leaved empty to consider all features in node splitting.

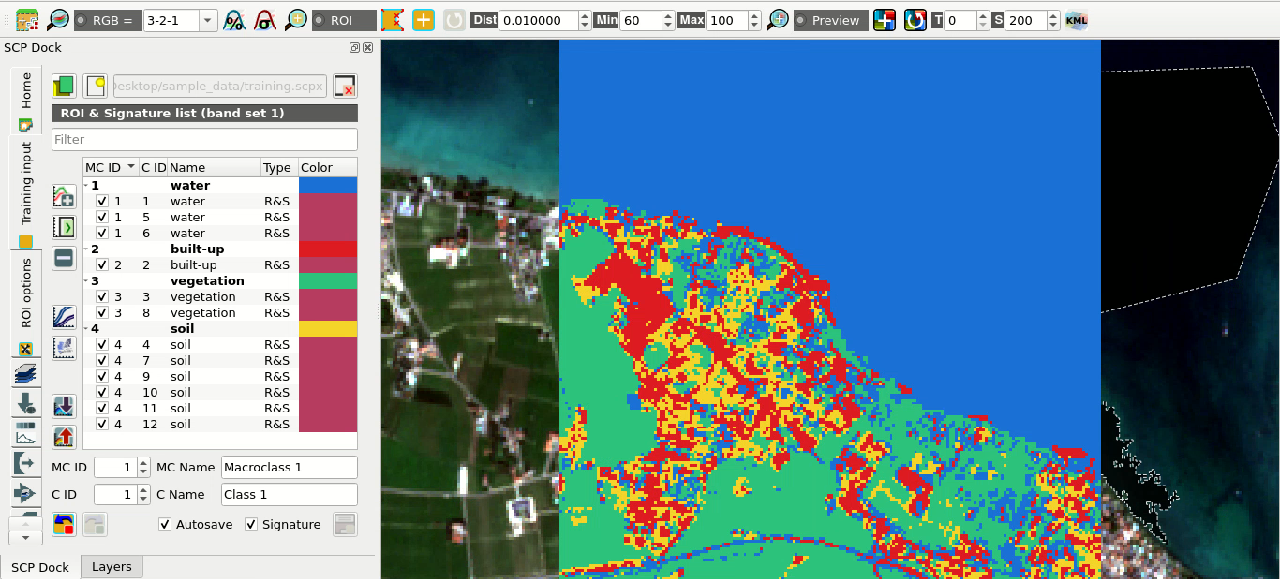

We can start with Number of trees set to 10 (the process should be rapid) and in Classification preview set Size = 200; click the button preview and then left click a point of the image in the map.
If we click again the button preview and then left click a point of the image in the map, we should notice that the process is more rapid. This is because the classifier is already trained, and directly used to perform the classification.
We can increase Number of trees to 100, click the button preview and then left click a point of the image in the map. Now the process should take more time because changing the classification parameters resets the classifier that needs to train again.
Tip
Generally, Number of trees should be at least 500 for good results.
Other interesting options are:
- One-Vs-Rest: if checked, the algorithm performs One-Vs-Rest classification which basically fits one classifier per class.
- Cross validation: if checked, perform cross validation that is a function provided by scikit-learn to avoid overfitting by splitting the training set into k smaller sets (read more . In particular, the function StratifiedKFold (with parameters n_splits=5, shuffle=True) is used to create 5 sets, each one containing approximately the same percentage of samples for each class as the complete set. This option can potentially increase significantly the computation time.
- Balanced class weight: if checked, gives all classes equal weight with a balanced weight that is computed inversely proportional to class frequency in the training data.
- Find best estimator with steps: if checked, the algorithm tries to find the best estimator iteratively with the defined number of steps (the more the steps, the slower the process will be), by changing the algorithm parameters.
The option Calculate classification confidence raster is useful for the final classification output; if checked, in addition to the output classification, a confidence raster is produced (each pixel represents the confidence of the classifier in assigning the output class).
Create the Classification Output
Assuming that the results of classification previews are satisfactory, we can perform the actual land cover classification of the whole image. We can check the option Calculate classification confidence raster to compute also the confidence raster.
In Classification click the button Run and define the path of the classification output file (.tif).
Tip
We can save the classifier for later use by clicking Save classifier .
We can also analyze the confidence raster; higher values (i.e., near 1) represent pixels with high confidence, while lower values (i.e., near 0) represent pixels where the classifier is not well trained and more uncertain, therefore classification errors are expected.
Tip
It is recommended to analyze the pixels that have low confidence, and improve the classification by creating new ROIs or editing the existing ones.
We have performed a land cover classification using Random Forest algorithm. Other classification algorithms are described in other tutorials.
For any comment or question, join the Facebook group or GitHub discussions about the Semi-Automatic Classification Plugin.
